About the CNC Router
The Z-Modular CNC Router is the workhorse of a modern modular furniture shop. A cast steel structure, Taiwan-made linear rails and a German ball screw hold repeat positioning to ±0.02 mm cut after cut, so nested cabinet parts come off the bed square and ready for edge banding.
It carves wooden doors, cabinet shutters, wave plates, badges, signage and light 3D relief work. The DSP handset lets an operator load a job, jog to zero and start cutting without a dedicated PC at the machine, and the controller can re-carve from the point of interruption after a power failure.

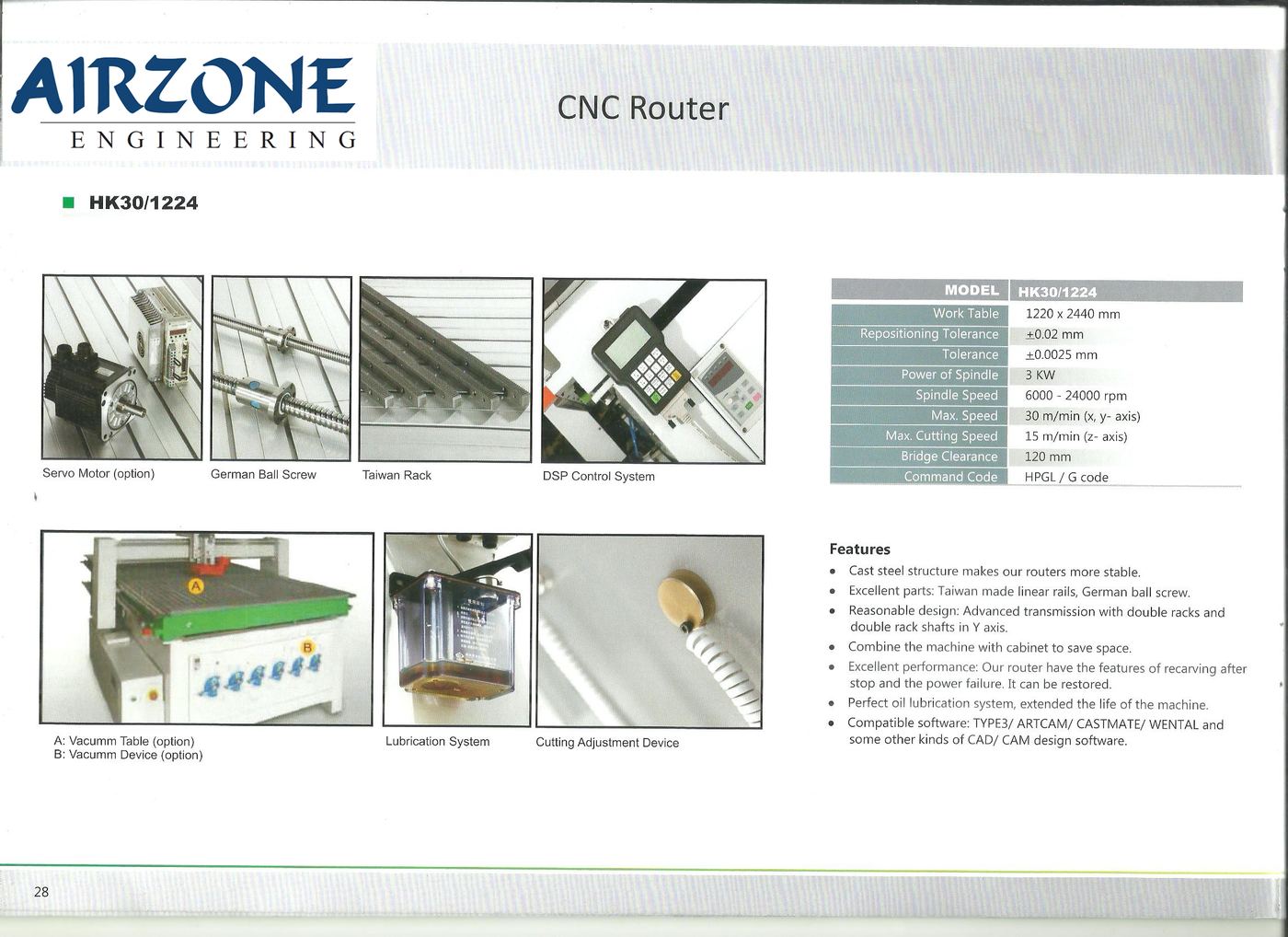

Key features
- Cast steel frame for vibration-free cutting at high feed rates
- German ball screw on Z axis, twin rack-and-pinion drive on Y axis
- DSP control system with HPGL / G-code support
- Automatic oil lubrication system extends rail and screw life
- Re-carve after stop or power failure without losing the job
- Vacuum table and vacuum pump available as options
- Runs files from Type3, ArtCAM, Castmate, Wentai and other CAD/CAM software
Technical specifications
| Parameter | HK30/1224 |
|---|---|
| Work table | 1220 × 2440 mm |
| Repositioning tolerance | ±0.02 mm |
| Tolerance | ±0.0025 mm |
| Spindle power | 3 KW |
| Spindle speed | 6000 – 24000 rpm |
| Max. speed (X, Y axis) | 30 m/min |
| Max. cutting speed (Z axis) | 15 m/min |
| Bridge clearance | 120 mm |
| Command code | HPGL / G code |
CNC machines for stone, marble, foam, PVC and die & pattern making, plus CNC wood lathes and CO₂ laser machines, are available on request.
Design and specifications are subject to change without prior notice.
Typical applications
- Modular kitchen shutters
- Wardrobe and cabinet nesting
- Carved door panels
- Signage and letter cutting
- Jaali and screen partitions
